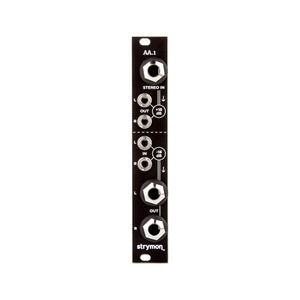

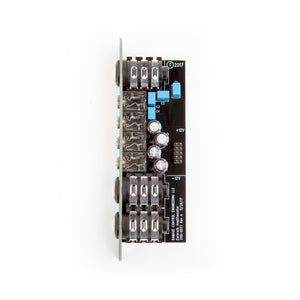

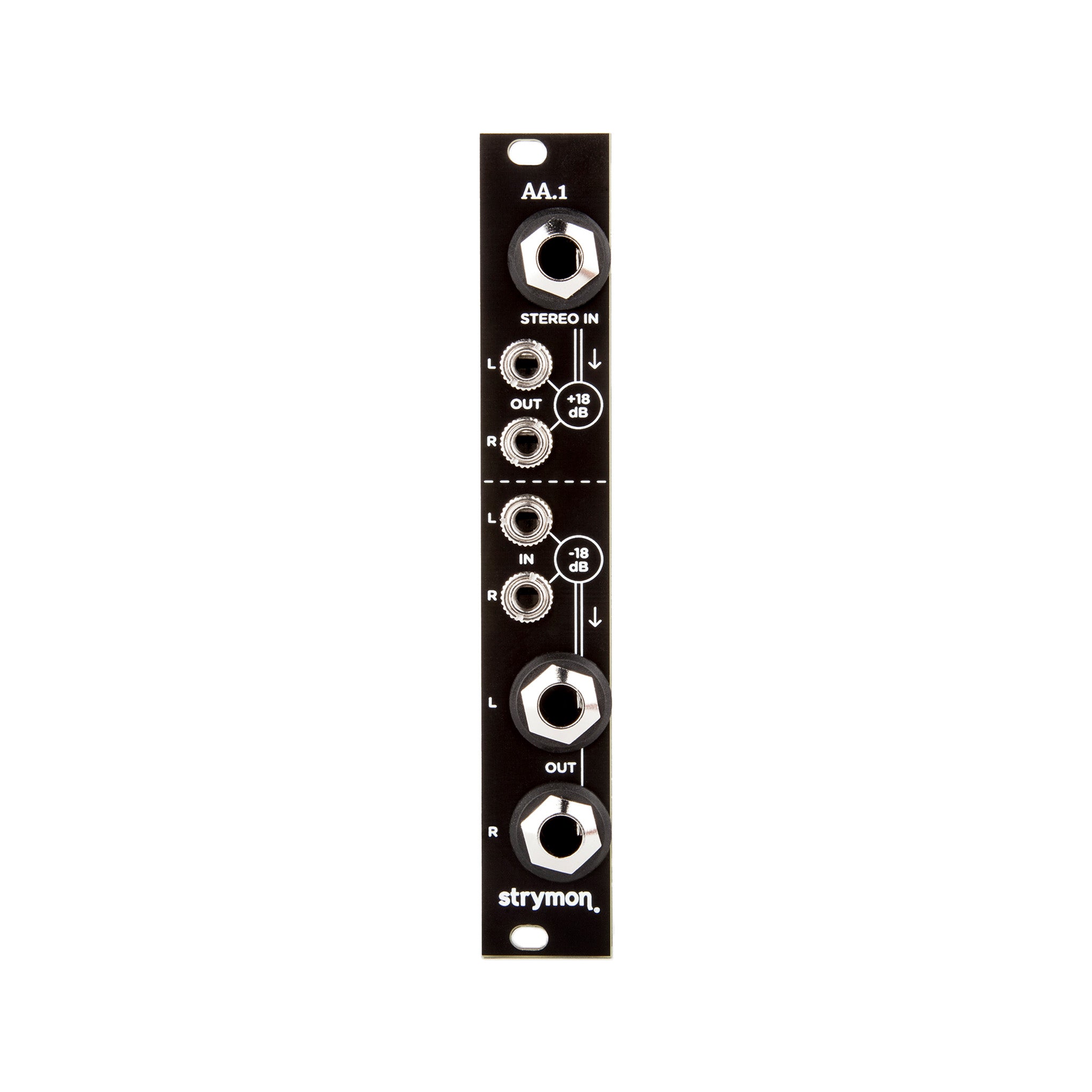

Strymon AA.1 Amplifier Attenuator Eurorack Module
- FREE shipping for orders above SGD500
- Typically ships from warehouse in 1-2 full business days
NEED HELP?
About This Product
AA.1 is designed to be your bridge between the world of guitar pedals and the world of Eurorack modular. This compact 4HP amplifier attenuator module has everything you need to interface your modular with your guitar effects pedals as well as with your guitar or bass.
Specifications::
- Amp Gain: +18dB
- Amp Max Input Level (before soft clipping): 2.25Vpp
- Amp Max Output: 18Vpp
- Amp Input Impedance: 1 MΩ
- Amp Output Impedance: 1 kΩ
- Amp Frequency Response: 20Hz – 20kHz, +/- 1dB
- Attenuator Gain: -18dB
- Attenuator Max Input Level (Nominal): 20Vpp
- Attenuator Max Output Level (Nominal): 2.5Vpp
- Attenuator Input Impedance: 8 kΩ
- Attenuator Output Impedance: 880 Ω
- Attenuator Frequency Response: 20Hz – 20kHz, +/- 1dB
- Power: +12V rail: 10mA max, -12V rail: 10mA max, +5V rail: 0mA
- Dimensions: 4 HP Eurorack format module
- Rack Depth: 1.5″ (38mm)
