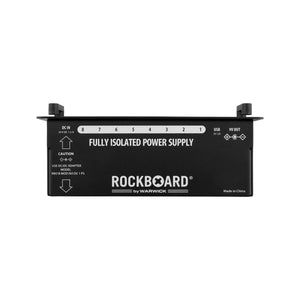

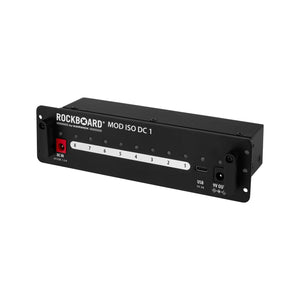

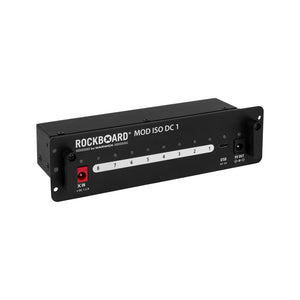

RockBoard by Warwick Power MOD ISO DC 1 Multi-Power-Supply

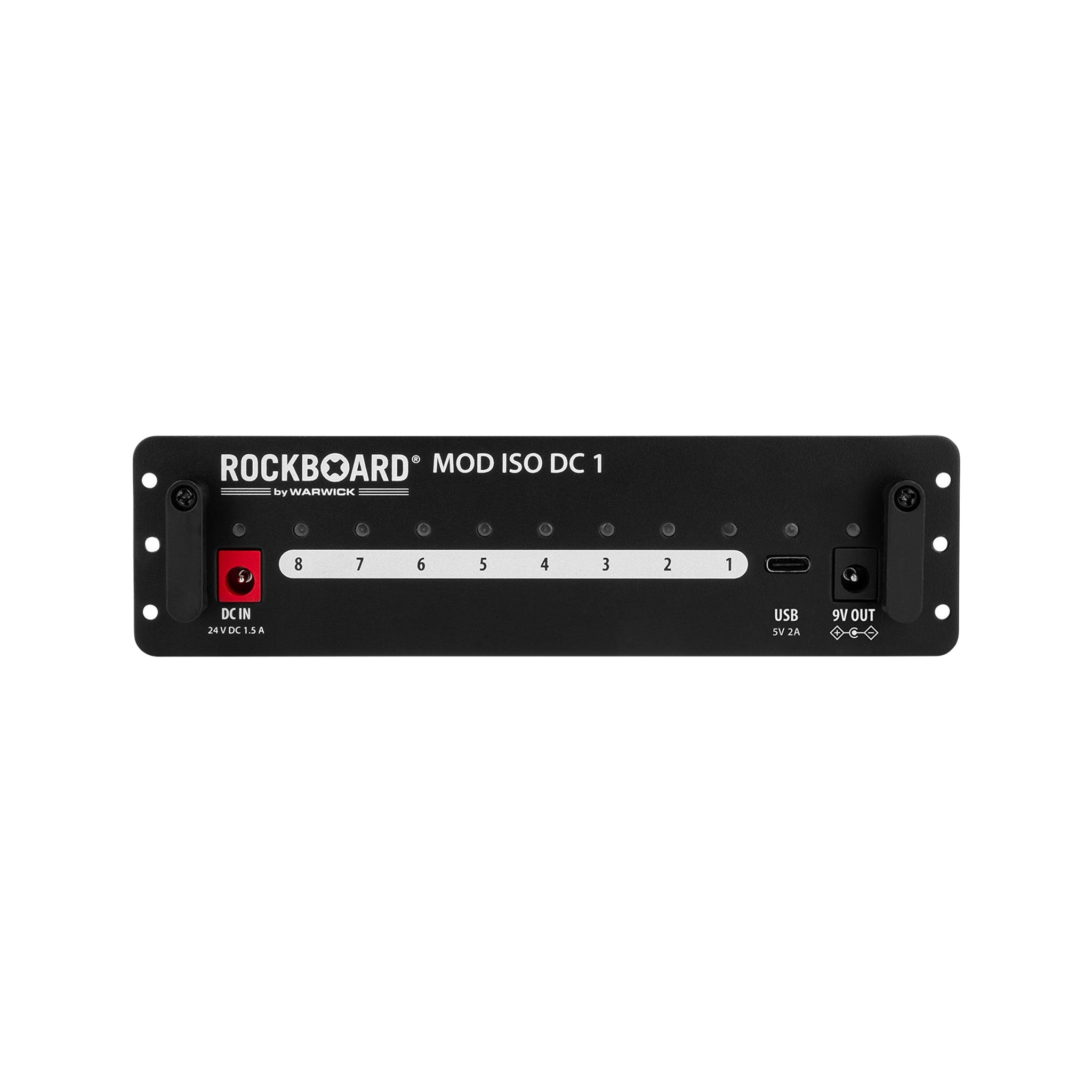

The Power MOD ISO DC 1 is a multi-power supply for effect pedals and provides up to 9 electrically isolated, highly filtered 9 VDC power connections and one 5V USB connection.

It fits in a MOD slot on ROCKBOARD pedalboards, but, due to its removable front plate, it can also be used as a power supply for other pedalboards. The multi-power supply is designed to provide noiseless power to up to 9 effects pedals simultaneously. Sophisticated filtering technology effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit.

Separate LED indicate healthy connections for individual each slot. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational.

Features:

• Multi-power supply for effects pedals
• Provides transformer-isolated and highly filtered power slots

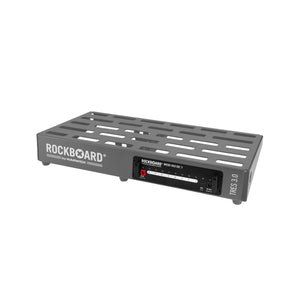

• Fits in a MOD slot on RockBoard® pedalboards
• Compatible with most other pedalboards

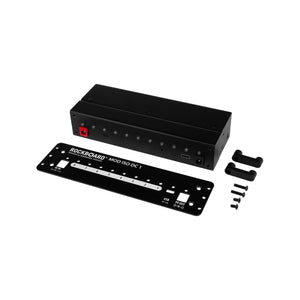

• Detachable front plate for mounting on top or underneath pedalboards
• Advanced filter technology prevents high-frequency noise
• External mains transformer prevents low-frequency interference
• Input polarity protection
• Individual status LEDs and short circuit protection for all power slots
• 2 x strain relief clamps for connected cables
• Input power: 24 VDC / 1.5 A

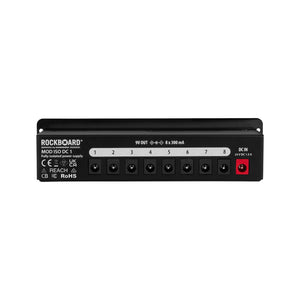

• Outputs: 8 x 9 VDC, 300 mA each / 1 x 9 VDC output, 500 mA / 1 x 5 VDC USB-C, 2000 mA

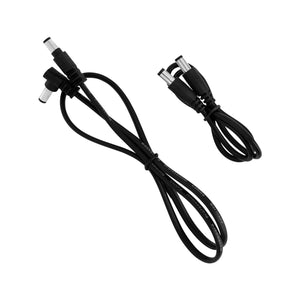

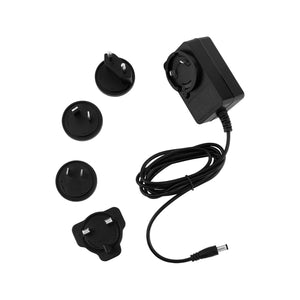

• Includes: 9 x RockBoard® Flat Power Cable, 60 cm (for connecting effects pedals), 1 x 24 VDC power adapter (1.5 mA) with exchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V AC
• Dimensions: 175mm (L) x 85mm (W) x 47mm (H) / 6.9" (L) x 3.34" (W) x 1.85" (H) (with front plate) / 160mm (L) x 85mm (W) x 33mm (H) / 6.3" (L) x 3.34" (W) x 1.3" (H) (without front plate)
• Weight: 500 g / 1.1 lbs
