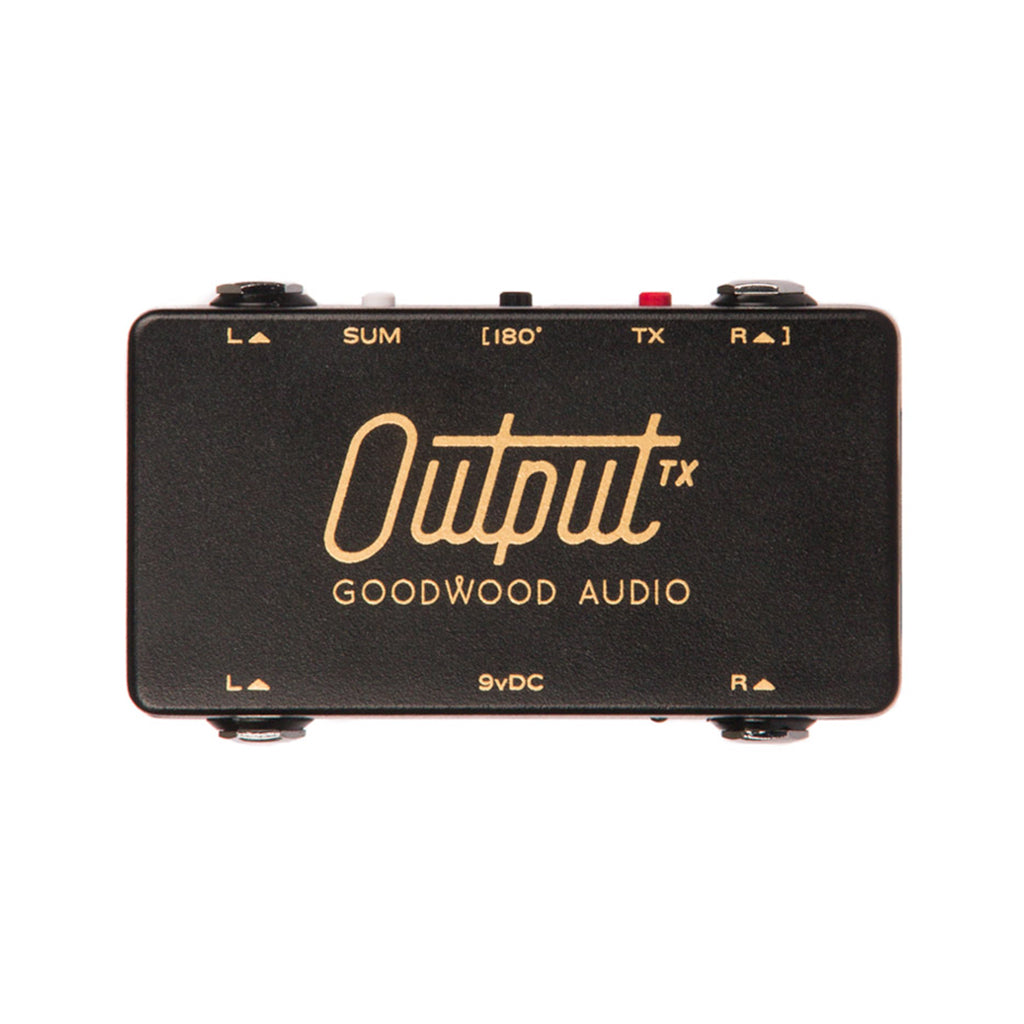

Goodwood Audio Output TX Guitar Pedal

Output is designed for players that need a compact way to take care of the outputs on their pedal board. Output takes care of multiple stereo to mono summing options while fitting underneath your angled board, or even under another pedal.

In comparison to the similar Output, the Output TX adds an audio transformer to give the option of ground lift and phase correction.

There are two types of summing on Output, Stereo Sum and Split Sum:

• Stereo Sum – Use stereo effects as normal. When summed, the left and right inputs are merged and the exact same signal is sent to the left and right outputs.
• Split sum – Still use stereo effects as normal. When summed, the right input of Output is ignored and the left input is split to both the left and right outputs.

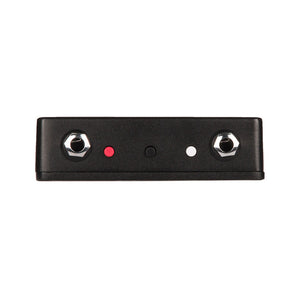

Ground Lift & Phase Correction - the pedal comes with ground lift and phase correction for players that want to run more than one amp.

• Ground Lift – To safely fix the common problem of ground loop (audible hum/buzz coming from the amps)
• Phase Correction – With the black phase correction button you can now put two amps that were out of phase, back in phase and working together.

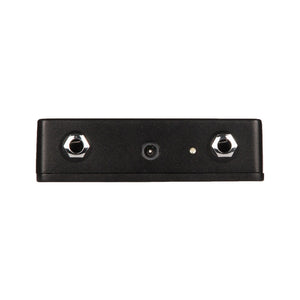

Dimensions – 66mm L x 111mm W x 31mm H (including all jacks and push buttons)
