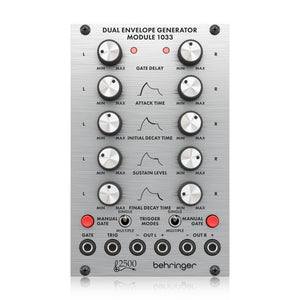

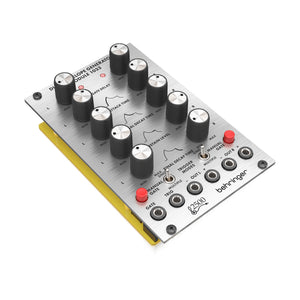

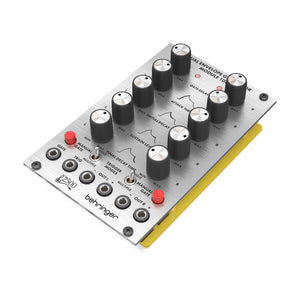

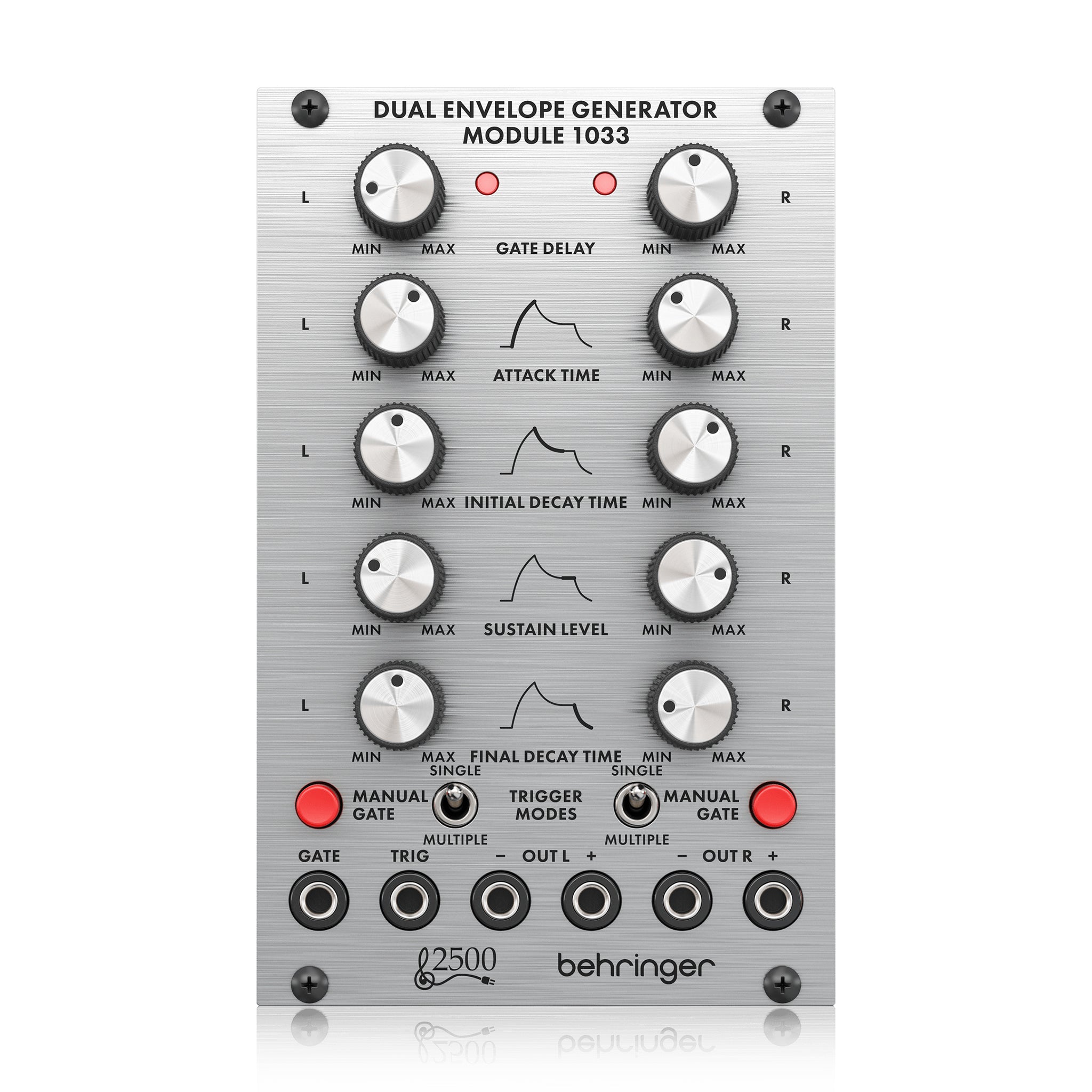

An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the DUAL ENVELOPE GENERATOR MODULE 1033 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Features:

• Classic 1033 analog dual DADSR module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• The module contains two identical envelope generators for creating control signals
• Each generator features 5 adjustable parameters: Gate Delay, Attack Time, Initial Decay Time, Sustain Level, Final Decay Time
• Gate enables the beginning of the envelope to be delayed between 3 ms and 3 seconds
• Each envelope is initiated by Gate and Trigger signals
• Switchable between 2 operating modes for added flexibility
• Single trigger mode uses only the gate signal to control the envelope
• Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present
• Manual gate operation via front panel push button with LED for gate signal indication
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
