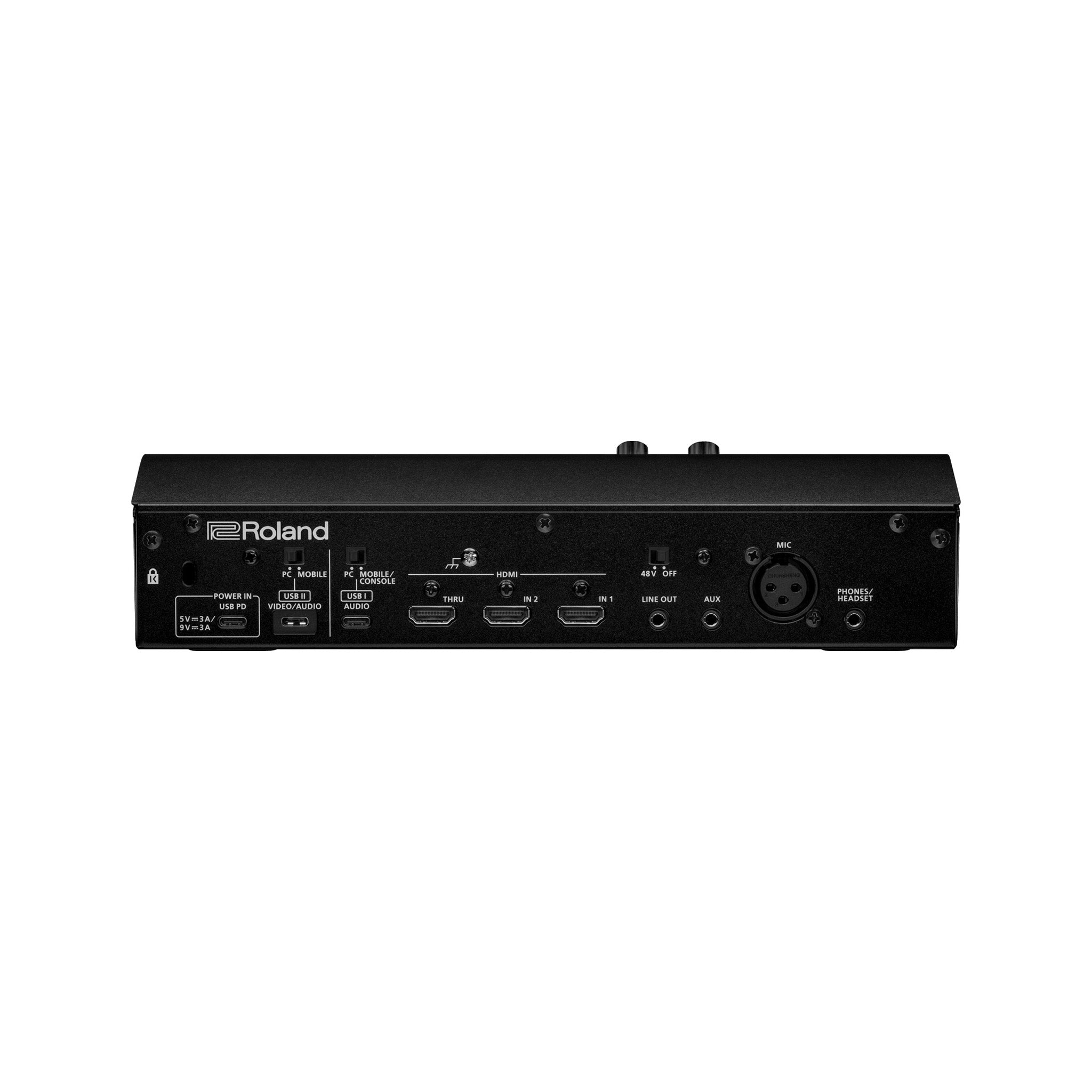

Roland Bridge Cast X Dual-bus Gaming Audio Mixer
Hover over image to zoom in
Drag to rotate 360
Available immediately
- FREE shipping for orders above SGD500
- Typically ships from warehouse in 1-2 full business days
Sorry, this product is currently unavailable.
We’re still waiting for an expected delivery date on this product. Please contact us to place a pre-order or to see if we have a B-Stock or an alternative available.
About This Product
Elevate your streaming content with Bridge Cast X, a compact, all-in-one desktop solution filled with hands-on controls and Roland’s acclaimed pro AV features. Say goodbye to messy add-ons and unify your workflow with multiple connections for gaming consoles, computers, cameras, and audio devices. Then crush the competition with epic features like dual sound mixes, broadcast-quality XLR mic support, voice processing, royalty-free music and sound effects, assignable control pads, and so much more.
Features:
- Professional AV streaming interface for online gamers, podcasters, and vloggers
- Connect multiple devices at once and switch up your streaming setup without having to repatch cables
- Two USB-C ports for computers and mobile devices
- Two HDMI inputs for gaming consoles, cameras, and more
- HDMI Thru for connecting to an external video monitor
- Powerful 32-bit hardware DSP allows you to dedicate all your sources to gaming and streaming
- Create independent mixes for you and the online audience with dual audio busses
- High-quality XLR microphone preamp with phantom power for broadcast-grade mics
- Headphones jack with a professional high-sensitivity output and support for a headset or inline mic
- Hands-on knobs and buttons for quick sound control
- Six assignable control pads for sound FX, Game EQ presets, OBS shortcuts, and more
- Solid, streamlined design with adjustable knob LED colors
- Voice Changer effects derived from the Roland VT series
- High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
- Enhance your gaming performance with five customizable Game EQ presets
- Delay function to synchronize audio with video when needed
- Aux input for playing audio from a smartphone or external device
- Customize settings and save hardware configurations with the Bridge Cast app
- Add royalty-free background music and sound effects to your streams with BGM Cast, available through the Bridge Cast app and Roland Cloud
Specifications
- HDMI In/Thru Formats: 1280 x 720/50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F), 1920 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F), 2560 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F), 3840 x 2160/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F), 1280 x 720/60Hz (VESA DMT), 1920 x 1080/60Hz (VESA DMT), 2560 x 1440/60Hz (VESA CVT Reduced Blanking), 2560 x 1080/60Hz (VESA CVT Reduced Blanking), 3440 x 1440/60Hz (VESA CVT Reduced Blanking), 1920 x 1080/240Hz, 2560 x 1080/144Hz, 2560 x 1440/144Hz, 3440 x 1440/100Hz
- HDMI In/Thru Formats (When using USB video output): 1280 x 720/50p, 59.94p, 60p (CTA-861-F), 1920 x 1080/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F), 3840 x 2160/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
- USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
- USB Video Output Resolution: 1920 x 1080, 1280 x 720, 640 x 480 (Maximum frame rate is 60 fps)
- Input Channel: Mic, Aux, HDMI, USB Chat, USB Game, USB Music, USB System, Console/Mobile
- Output Channel: Line Out, Phones, Aux, USB Mic, USB Stream, USB Personal, USB Console/Mobile
- Audio Mix Bus: 2 (Stream Mix, Personal Mix)
- Sampling Frequency: 44.1 kHz, 48 kHz, 96 kHz (Windows), 48 kHz (macOS/iOS/Other)
- Signal Processing: 24 bits AD/DA, 32-bit Floating point Internal Processing
- Mic Effects: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
- Chat Effects: De-esser, Compressor
- HDMI Effects: Equalizer, Virtual Surround
- Game Effects: Equalizer, Virtual Surround
- Stream Effects: Delay
- Audio File Player: 2 Tracks, WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono) Data Format, 5 seconds/track max. time
- Connectors: Mic jack: XLR type (Phantom power DC 48 V, 6 mA Max), Phones/Headset jack: Stereo miniature phone type (CTIA, PLUG-IN power), Stereo miniature phone type aux jack (TRRS), Stereo miniature phone type line out jack (TRS), HDMI IN 1--2, Thru jack: HDMI type A, USB I port: USB Type-C(R), USB II port: USB Type-C(R), USB Power In port: USB Type-C(R)
- Power: USB bus power, USB PD compatible AC adaptor (sold separately)
- Current Draw: 5 V DC, 3 A, 9 V DC, 3 A
- System Requirements: Microsoft Windows 10, Windows 11, Apple macOS 12 or later, Apple iOS 16 or later
- Included Accessories: Leaflet "Read Me First", USB 3.2 Type-C(R) to Type-C(R) Cable, USB 2.0 Type-C(R) to Type-C(R) Cable (Power)
- Dimensions: 269mm (W) x 130mm (D) x 70mm (H) / 10.6" (W) x 5.1" 5.1" (D) x 2.8" (H)
- Weight: 1.35kg / 3lb
