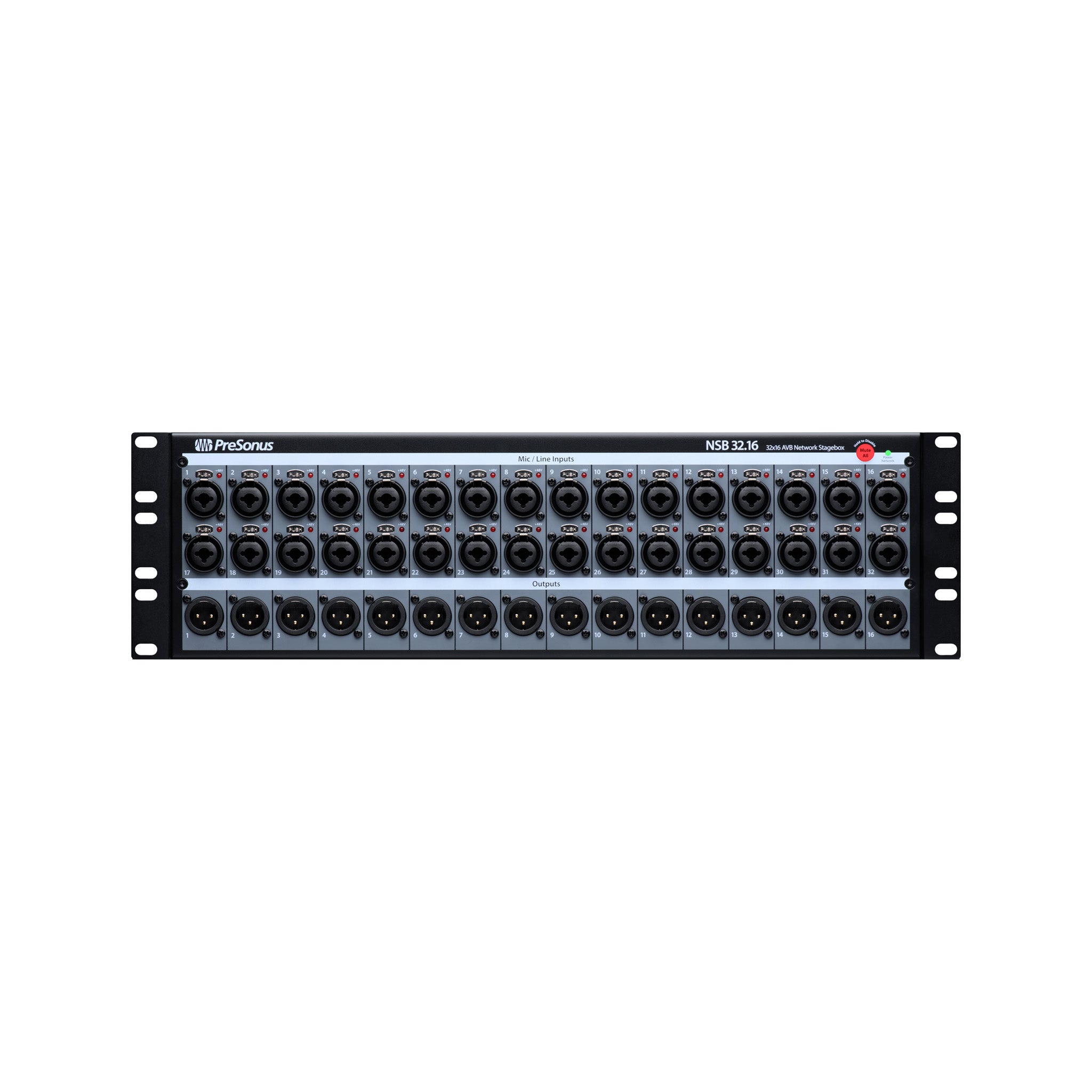

PreSonus NSB32.16 AVB Networked Stage Box
Hover over image to zoom in
Drag to rotate 360
Product is selling fast, get it before it's gone!
- FREE shipping for orders above SGD500
- Typically ships from warehouse in 1-2 full business days
Sorry, this product is currently unavailable.
We’re still waiting for an expected delivery date on this product. Please contact us to place a pre-order or to see if we have a B-Stock or an alternative available.
About This Product
The PreSonus® NSB 32.16 networked stage box lets you put your analogue I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with 32 digitally controlled XMAX mic preamps, 32 balanced line-level inputs, 16 analogue outputs, and 2 stereo AES3 digital outputs, the NSB 32.16 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from Universal Control remote mixing software on your tablet or laptop.
Features:
- 32x16 network stage box for StudioLive Series III console mixers
- 32 locking digitally controlled XMAX mic/line inputs with gain compensation for shared streams
- 16 XLR line outputs
- 2 Stereo AES3 Digital Outputs
- Easy configuration from StudioLive Series III console mixers and Universal Control
- Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
- Rugged all-metal stage box enclosure
- Included multi-position rack ears
- Compatible with stage pockets from Ace Backstage
Specifications
- Phantom Power: +48 VDC (±2 VDC)
- Voltage: 100-120V
- Digital Audio AVB Audio Network Ports: Locking XLR, Ethernet
- Line Input Connection: 1/4" Balanced TRS, 20-20 kHz (±0.5 dBu at Unity Gain) Frequency Response, +18 dBu Max. Level
- Mic Input Connection: XLR Balanced Female, 20-20 kHz (±0.5 dBu at Unity Gain) Frequency Response, +12 dBu (Unity Gain)
- Supported Sample Rates: 48 kHz, 44.1 kHz
- XLR Output: +24 dBu, ±0.5 dBu Max. Level, 100 Ohms Impedance
- Digital Audio Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Dimensions: 17.25” (W) x 5.25” (D) x 5.25” (H) / 43.8cm (W) x 13.3cm (D) x 13.3cm (H)
