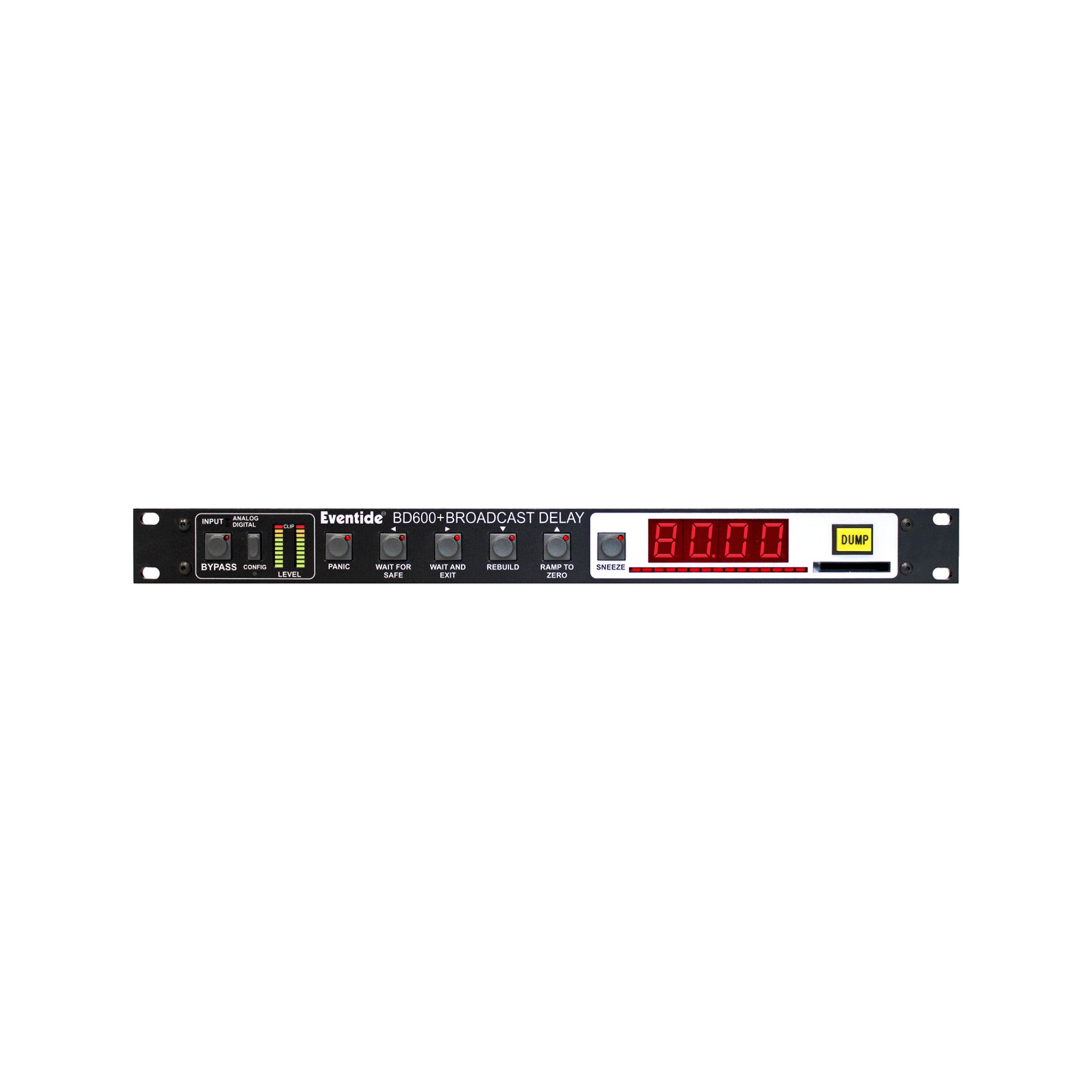

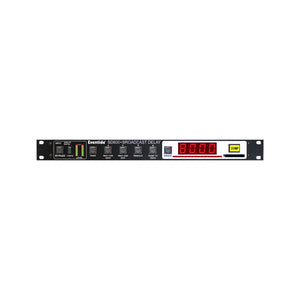

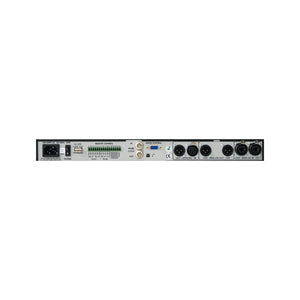

Eventide BD600+ Professional Broadcast Delay Processor
- FREE shipping for orders above SGD500
- Typically ships from warehouse in 1-2 full business days
NEED HELP?
About This Product
The BD600+ revolutionizes delay technology, offering an unrivalled 80 seconds of premium quality delay – double the capacity of other systems. Tailor the delay buffer length from four seconds to the full 80 seconds, with dump customization in 1/2 second increments up to 10 seconds per segment. With each press of the DUMP button, only one segment is removed, ensuring uninterrupted protection. The innovative "sneeze" button briefly mutes incoming audio, allowing for coughs, sneezes, or brief comments without dead air. Ideal for HD radio stations, the BD600+ delivers precise subsample adjustable delay for seamless analog-to-digital synchronization. Its MicroPrecision Delay ensures on-air adjustments with smooth transitions and no audible artefacts. With enhanced fidelity, extended delay protection, and expanded remote capabilities, the BD600+ sets a new standard in broadcast delay technology, the culmination of three decades of industry-leading innovation.
Features:
- Micro-precision delay mode for HD synchronization
- 80 seconds of delay protection
- USB Remote Control
- “Panic” allows WAV file playback during delay rebuild
- 24-bit AES/EBU digital I/O, with optional wordclock sync
- 24-bit analog XLR I/O
- User-defined “dump” length segmentation
- “Sneeze” button for momentary edit
- Remote control capability
- Easy-to-wire euroblock for remote hookup (on base unit)
- RS-232 I/O
- Programmable I/O
- Remote option offers 16 bi-polar opto-isolated inputs and 16 open-collector outputs
Specifications
- Analog I/O: XLR pin 2 hot, true differential balanced, +4 dBm nominal
- Digital I/O: 2 Channels of 24-bit AES/EBU
- Remote: 4 configurable inputs (closure to ground), 2 relay-isolated status outputs
- Compact Flash Interface: Supports Type I and Type II Compact Flash cards for .WAV sample playback and software update
- Sample Rate: 48kHz, 44.1kHz, Word Clock, AES/EBU
- Power: 40W, 100-240 VAC, 50/60Hz
- Dimensions: 19" (w) x 10.5" (D) x 1.75" (H) / 48.3cm (W) x 26.7cm (D) x 4.5cm (H)
- Weight: 4.1 kg / 9 lb
